Pulsar Apex XD38A Thermal Rifle Scope PL76416

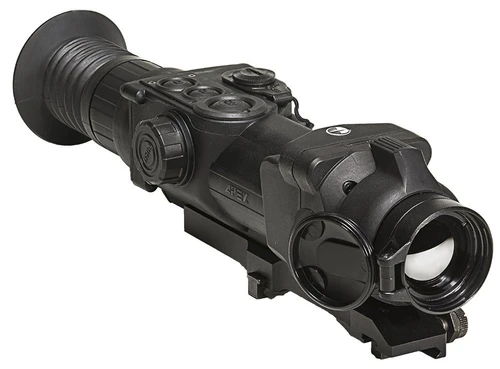

Pulsar Apex XD38A 1.5-6x32 Thermal Rifle Scope PL76416

×
×
Brand:
Price:
$2,999.97
SKU:
33001
Weight:
4.00 LBS
Availability:
This item is subject to the International Traffic in Arms Regulation (ITAR) and exporting from the USA is strictly prohibited. This item is subject to an Enhanced Payer Authentication Program (EPAP). See expanded info in product description.
Shipping:
Free Shipping
Quantity:
Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    Designed with cutting-edge, “white hot” and “black hot” thermal technology, the Pulsar Apex™ 1.5-6x32 XD38A Thermal Riflescope offers precision placement more than 1,000 yards. Long-distance viewing is made possible by the continuous digital zoom for an extended range of magnification. The thermal core resolution of 384x288 captures a more detailed image, while the crisp LCD display and high 50 hz frame rate delivers a consistent, vivid image of faster-moving objects.

    The Apex™ XD38A’s 4x digital zoom offers a continuous digital zoom for an extended range of magnification. Its one-shot zeroing and freeze function takes an image of the target to quickly zero the crosshairs to the firearm’s point of impact.
    The device includes 3 operating modes (Rocks, Forest and Identification) for enhanced contrast, significantly improving rendering of hot object details. Users can choose from the automatic, manual or semi-automatic calibration modes, which calibrates the lens in just 1 to 2 seconds. The internal dampening system keeps the thermal core stable up to 1,000Gs of recoil, equivalent to a .375 H&H bolt-action rifle. It also includes updatable software; ensuring users keep improving their Apex’s performance.

    Key Specifications:

    Type: Thermal Riflescope
    Magnification: 1.5x Optical to 6x Digital Zoom
    Frame Rate: 50Hz

    • 384x288 thermal resolution, 50hz refresh rate
    • High 640x480 resolution LCD display
    • 950m detection range (human)
    • One-shot zeroing with freeze function
    • 1.5-6x magnification
    • Continuous 4x digital zoom
    • Manual, automatic, and semi-automatic calibration modes
    • Memorization of 3 zeroing parameters
    • 10 variable electronic reticles
    • IRIS technology, increased recognition and detection software
    • Rock, forest, and identification viewing modes
    • Hot white/ hot black viewing modes
    • Defective pixel repair feature
    • Video output
    • External power supply adaptable



    Technical Specifications:

    • Electronic components
      • Type of Microbolometer Uncooled Microbolometer
      • Frame Rate, Hz 50
      • Microbolometer resolution, pixels 384х288
      • Spectral Sensitivity, µm 8-14
      • Pixel Pitch, µm 25
      • Video format PAL/NTSC
      • Display type AMLCD
      • Display Resolution, pix. 640x480
      • Video IN / OUT availability no/yes
      • The operation modes rocks, forest, identification
      • Defective pixel repair option yes
    • Optical characteristics
      • Magnification, x 1.5-6x
      • Digital zoom, x continuous zoom 1x-4х
      • Lens diameter, mm 32
      • Lens focus, mm 38
      • Relative aperture, D/f' 1:1.2
      • Field of View,°, horizontal * vertical 14.4/10.8 - 2х zoom (7.2/ 5.4)- 4x zoom (3.6/2.7)
      • Field of View, m@100m, horizontal 25 (2x zoom- 12.5/4x zoom -6.25)
      • Minimum focusing distance, m 5
      • Eye Relief, mm 67
      • Diopter adjustment, dptr. - 4…+ 3.5
    • Focusing type of distance objective
      • Range of Detection, m\n
      • Range of detection, yd / m (object (human = 1.7*0.5m) 1,050 / 950
    • Power Supply
      • Power Supply 4-6 V
      • Battery type 2xCR123
      • Battery life (with video out off), hours 5
      • Optional External Power Supply(not Included): Pulsar EPS3 or EPS5
    • Reticle
      • Windage & Elevation, 1 click (H/V), mm@100m 40/40
      • Windage & Elevation adjustment range, mm 8000/8000
      • Number of preloaded reticles 10
      • Reticle Type Variable electronic reticles
    •  Physical & operational characteristics
      • Lens Material germanium, glass
      • Body Material glass-nylon composite
      • Type of mount for attachment of additional accessories weaver
      • Operating Temp,°F/°С 5 to 122 / -15 to +50
      • Level of Protection (acc. to IEC 60529) IP67 100% dustproof and submergible to 1m for 1 hour
      • Waterproofness, yes/no yes
      • Calibration manual\nautomatic semi-automatic
      • Shockresistance on rifled weapon, J 6000
      • Mounting brackets on weapon weaver/picatinny
      • Remote control wireless
      • Length, in/mm 13.2 / 335
      • Width, in/mm 3.1 / 80
      • Height, in/mm 3 / 75
      • Weight (without batteries/without mount), oz/g 21.2 / 601



      *Manufacturer Specifications Are Subject to Change Without Notice

    ITAR & EPAP Notice:

    Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce.

    As part of our Enhanced Payer Authentication Program (EPAP), all orders for this item will be subject to a positive payer authentication. Billing and Shipping address must match. Orders addressed to freight forwarding companies will be cancelled.  Valid phone numbers are required. Random orders are subject to buyer contact, which may include: certification of buyer interaction via faxed or emailed Photo ID and/or photo copy of credit card. Fraudulent purchase attempts will be reported to the FBI Cyber Crime Taskforce, Defense Investigative Service, and the U.S. Customs Service.
